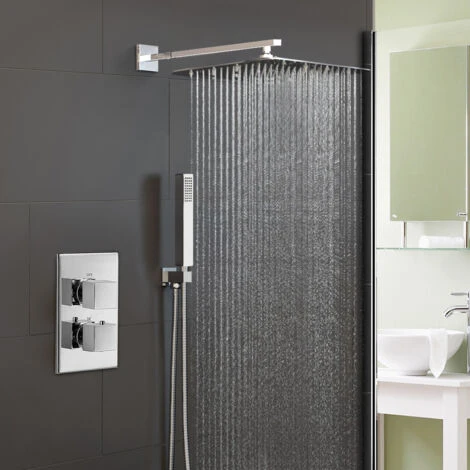

Temel Square Concealed Thermostatic Mixer Valve Hand Held Shower Head Set

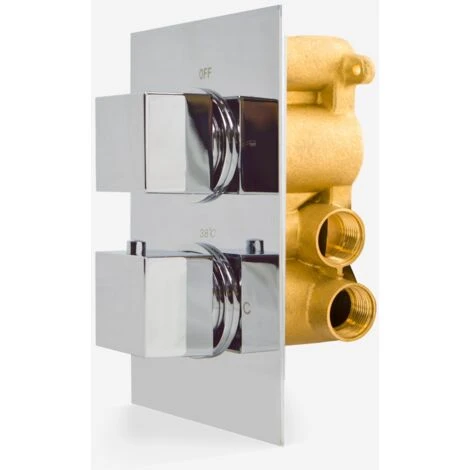

Specifications Thermostatic Shower Mixer Valve

• Top dial – controls water to 2 outlet diverter
• Bottom dial – temperature control
• High quality design
• Chrome finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Suitable for the following water systems

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum of 1.0 bar water pressure
