Temel Black Matt Round Concealed Thermostatic Mixer Valve Hand Held Shower Set

The thermostatic mixer valve gives you complete temperature control with a built-in anti-scalding device, so you’ll never have to worry about a drop in temperature again.

Thermostatic Valve

• Built in anti scald device set to 38
• Minimum 0.5 bar water pressure
• Inlet Connection Size: 3/4″
• Outlet Connection Size: 3/4″

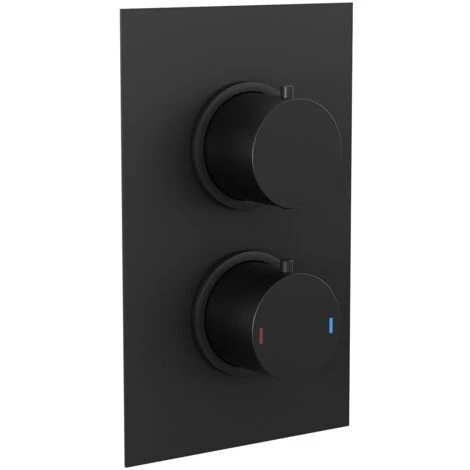

2 Dial 2 Way Thermostatic Mixer Valve Feature

• Top dial – controls water to 2 outlet diverter
• Bottom dial – temperature control
• Chrome plated to BS EN 248
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 °C with 38 ° C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1°C
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting, Inlet 3/4″, Outlet 3/4″
• Wall Mounted
• Easy clean anti-limescale rubber jets

Product Specifications

• Style: Modern
• Material: Brass
• Finish: Matt black
• Shape: Round, Slim
• Minimum Pressure: 0.5
• Maximum Pressure:7.0
• Inlet Connection Size: 3/4″
• Outlet Connection Size: 3/4″
• Shower head: 250 mm

Suitable Water Systems:

• Combination boiler systems
• Gravity fed systems (only with a pump)
• Megaflow system
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurized hot water cylinder type systems

Package Includes:

• Concealed thermostatic shower valve

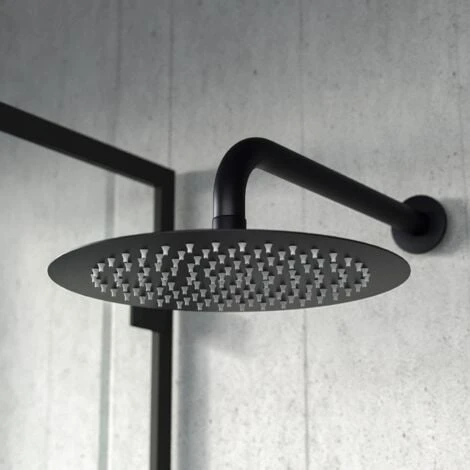

• Brass Slim shower head and shower arm
• Round slim shower handset
• Wall Connector and Brackets
