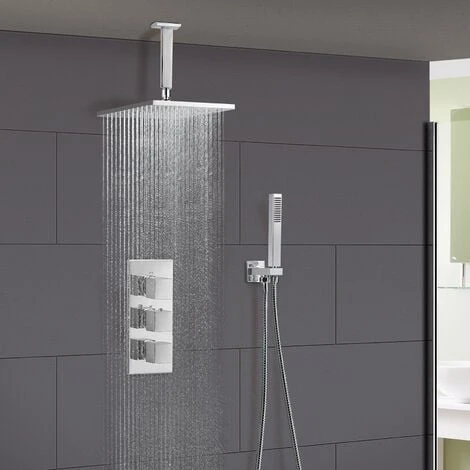

Rose 2 Way Square Concealed Thermostatic Mixer Valve Head Hand Held Shower Set

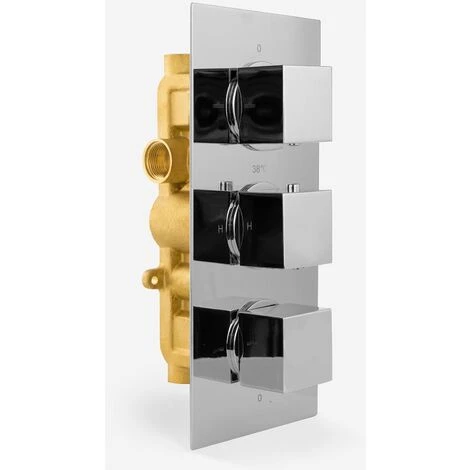

Thermostatic Concealed Valve

• Top dial – controls water to 2 outlet diverter
• Middle dial – on and off control
• Bottom dial – temperature control
• Manufactured from highly durable solid brass
• Finished in chrome ensuring a high-quality reflective mirror finish
• Tarnish and corrosion resistant
• Operating range 20-50ºC, with 38ºC safety button
• Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Overhead Shower & Arm

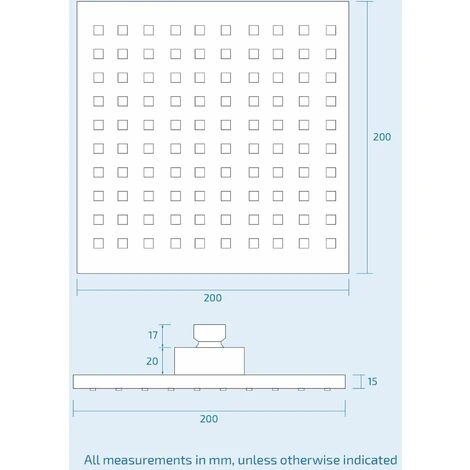

• Overhead shower dimensions – 200mm x 200mm x 8mm
• Chrome-plated ABS plastic overhead shower
• Solid brass 15 degrees swivel joint for ease of use
• Solid brass matching arm length – 150mm
• Finished in chrome ensuring a high-quality reflective mirror finish
• UK standard size fitting

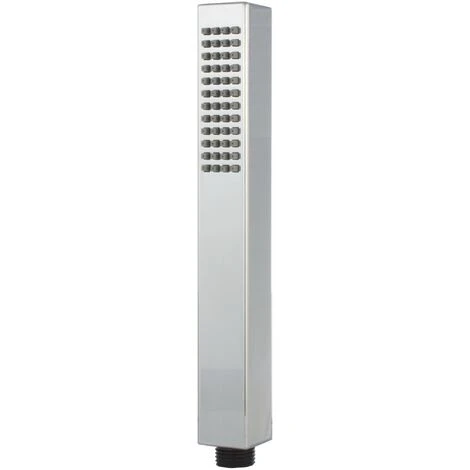

Handset Shower

• Slimline chrome plated ABS plastic handset
• Easy clean, anti-clog rubber nozzles
• Watertight construction to minimise the possibility of water leakage

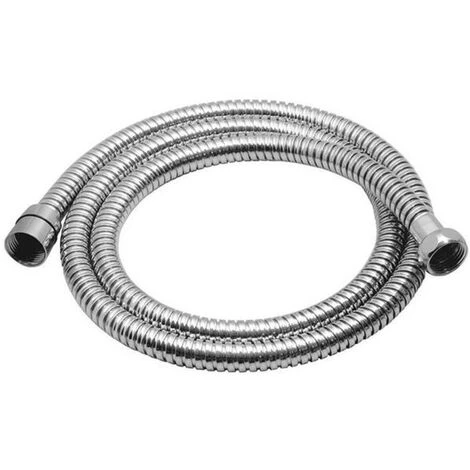

• Stainless steel, flexible, braided 1.5m double interlocking shower hose
• Wall outlet bracket and handset holder
• Finished in chrome ensuring a high-quality reflective mirror finish
• Easy to fit – no tools required
• UK standard size fitting

Suitable Water Systems:

Subject to a minimum pressure of 0.5 bar to maximum 6 bar

• Combination boiler systems
• Gravity fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Un-vented hot water systems
• Standard pressurised hot water cylinder type systems

Package Contents

• Thermostatic concealed valve
• Overhead shower with arm
• Handset shower with hose and bracket
