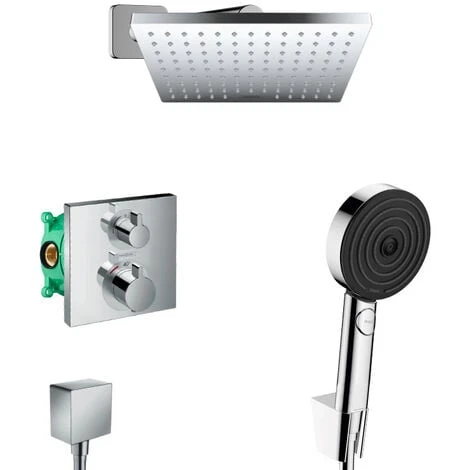

Hansgrohe Ecostat Shape Pulsify Built-in All-in-1 Shower Set With Overhead Shower 230 XXL + Performance 3jets Hand Shower

Guaranteed water savings with the 230 XXL EcoSmart head shower – 60% less water and energy consumption.

Showering pleasure in a large format with the incredibly soothing PowderRain jet. The Hansgrohe hand shower with a diameter of 105 mm surrounds you completely with water – and guarantees XXL performance in your bathroom.

With QuickClean, limescale deposits disappear in an instant. All you have to do is rub the soft silicone pins.

Features of the Ecostat Shape Pulsify Built-in all-in-1 Shower Set with Overhead Shower 230 XXL + Performance 3jets Hand Shower (VernisEcostat-1) :

• Hansgrohe Vernis Shape Overhead shower 230 1jet EcoSmart 9l/min, Chrome (26283000)
• Hansgrohe Vernis Shape Shower arm 24 cm M 1/2″ , Chrome (26405000_hansgrohe)
• Hansgrohe Ecostat Square Thermostatic mixer for concealed installation for 2 outlets (15714000)
• Hansgrohe Pulsify Select XXL Performance Chrome Hand Shower Set 105mm + 125cm Shower Hose + Holder, chrome (24302000)
• Hansgrohe Fixfit Square Wall outlet Square with non-return valve (26455000)
• Hansgrohe iBox Basic set universal ½” and ¾” (01800180)

.

Hansgrohe Vernis Shape Overhead shower 230 1jet EcoSmart 9l/min, Chrome (26283000) :

• Shower head size: 230 x 170 mm
• Spray pattern: Rain
• Ball-joint: overhead shower angle adjustable
• Spray face: plastic
• maximum flow rate 8.7 l/min at 3 bar
• Operating pressure: min. 1 bar/max. 6 bar
• overhead shower removable for cleaning
• Installation: ceiling or wall
• Connection thread ½”
• QuickClean : lime scale is effortlessly removed by wiping the silicone nozzle
• XXL Performance
• EcoSmart Uses up to 60% less water than conventional products – without any loss of comfort

.

Hansgrohe Ecostat Square Thermostatic mixer for concealed installation for 2 outlets (15714000) :

• Finish: chrome
• Designed to run 2 outlets
• Shut-off/ diverter valve, thermostat cartridge
• Maximum flow rate (at 3 bar): 29 l/min
• Flow rate upper outlet 28 l/min at 3 bar
• Flow rate lower outlet 25 l/min at 3 bar
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• Safety stop at 40°C
• Maximum temperature can be adjusted on installation
• Connection type: basic set
• Noise class: I
• WRAS 1807036

.

Hansgrohe Pulsify Select XXL Performance Chrome Hand Shower Set 105mm + 125cm Shower Hose + Holder, chrome (24302000) :

• Including :
• Hand shower
• Shower holder
• Shower hose
• Dimension: 105 mm
• PowderRain jet, IntenseRain jet, massage jet
• Jet change via Select button
• Flow rate: 11.4 l/min at 3 bar pressure
• Synthetic wall brackets
• QuickClean Easy cleaning: Limescale can be removed effortlessly by wiping the silicone nozzle
• XXL Performance: A large jet disc

.

Hansgrohe Fixfit Square Wall outlet Square with non-return valve (26455000) :

• plastic connection angle
• non-return valve
• connection thread ½”
• Kiwa UK 1809701

.

Hansgrohe Vernis Shape Shower arm 24 cm M 1/2″ , Chrome (26405000_hansgrohe) :

• Length: 240 mm
• shaft Ø: 26 mm
• Installation type: exposed design allows easy installation, all working parts are outside of the wall
• Material: solid Brass
• Version: 90° angle
• Connection type: ½”

.

Hansgrohe iBox Basic set universal ½” and ¾” (01800180) :

• 3 reductions 3/4
• 1 cap 3/4
• Adjustable mounting flange
• Suitable for all concealed mechanical and thermostatic shower and bath fittings with or without shut-off valve
• Symmetrical mounting
• Soundproof installation
• Connection type: 1/2″ & 3/4″
