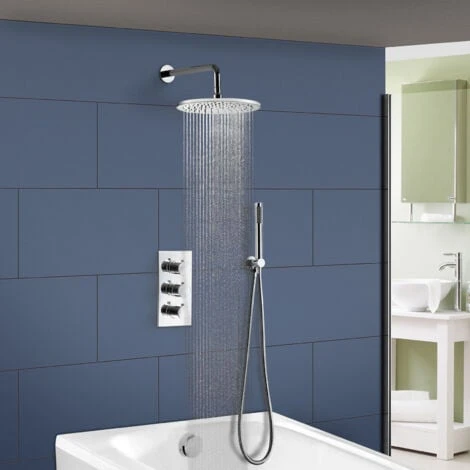

Flora Round 3 Way Concealed Thermostatic Mixer Shower Valve Pencil Handset Bath Filler

Thermostatic Mixer Shower Valve Pencil Handset Bath Filler Information:

This concealed thermostatic valve will compliment any modern bathroom suite, offers thermostatic showering via three easy-to-operate controls for temperature and flow.

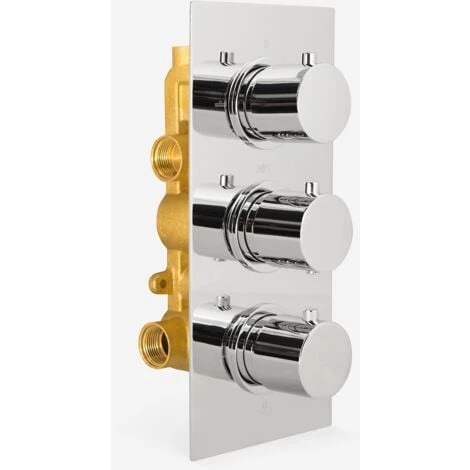

3 Dial Concealed Thermostatic Valve

• Top Dial – Controls water to 1 outlet diverter
• Middle Dial – Temperature Control
• Bottom Dial – Controls water to 2 outlet diverters
• High Quality Design
• Chrome Finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

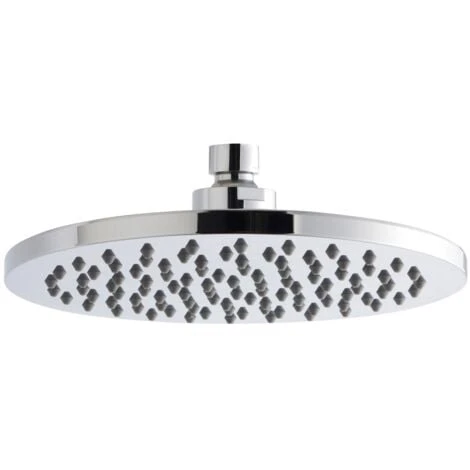

Shower Head with Wall Arm Details

• Shower head dimensions – 200mm
• Shower Arm Length – 300mm
• Chrome Finish
• Subject to a minimum of 1.0 bar water pressure

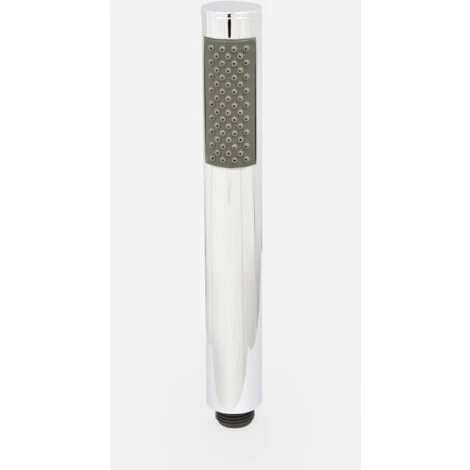

Shower Handset

• Matching chrome plated handset
• Easy clean, anti-clog rubber nozzles
• Water tight construction to minimise the possibility of water leakage
• Stainless steel, flexible, braided 1.5m double interlocking shower hose
• Wall outlet bracket and handset holder
• Finished in chrome ensuring a high quality reflective mirror finish
• Easy to fit – no tools required
• UK standard size fitting

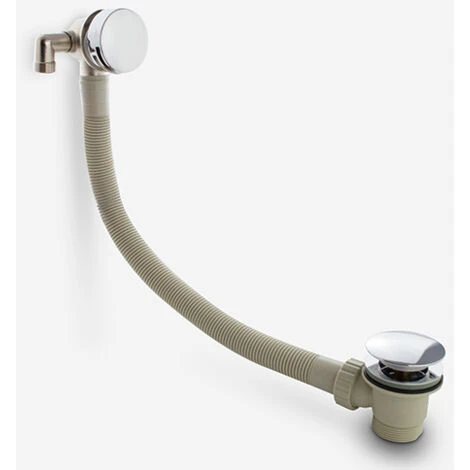

Bath Filler with Waste

• Combined bath filler and waste
• The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
• Easy to use – just press the waste and the waste pops up and allows the water to drain
• Modern design chrome plated finish
• Round Overflow Bath Filler
• Sprung Click Clack Waste
• Approx 550mm pipe

Suitable for the following water systems

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum of 1.0 bar water pressure

Package Contents

• Thermostatic concealed valve
• Overhead shower
• Shower arm
• Bath Filler and Waste
• Shower handset and Bracket Kit
