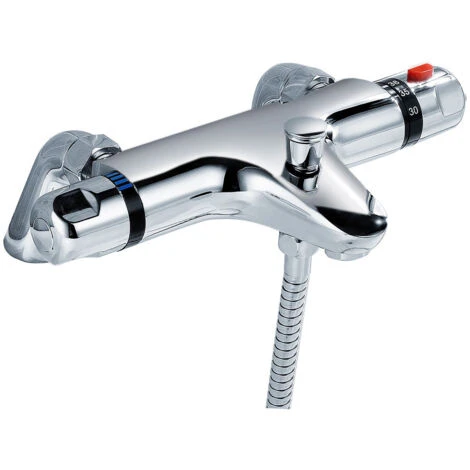

Bexley Thermostatic Deck Mounted Valve Bath Shower Mixer Riser Kit / 3 Mode Handset

Bath Shower Mixer Specifications

• Two outlets
• Deck-mounted tap.
• Connection for a shower hose found under the spout outlet. This is controlled by the pull-up diverter knob on top of the spout.
• Diffuser fitted in the spout for non-splashing spray.
• Durable and solid brass construction with highly polished 3 layer PVD mirror chrome finish.
• Non-return valve outlets.
• The Thermostatic Cartridge is solid Brass and NOT plastic like some other similar looking mixers!

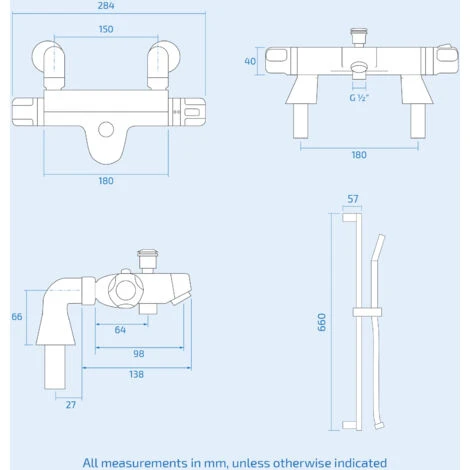

• Overall width of the tap – 285mm
• Height of main body – 40mm
• Depth of the main body – 60mm
• Spout reach – approx 70mm from the body.
• The tap comes with deck-mounting ‘legs’ or ‘pillars’ that are attached to the nuts on the rear of the taps body. The distance between the inlet centres at the base of the legs is approx 180mm. The inlets/nuts at the back of the taps are 150mm centre to centre where the tops of the legs attach to the main body.
• The left control knob controls the water on/off using a 1/4 turn ceramic disc cartridge.
• The right control knob is the temperature control.
• There is an override stop button at 38 Celsius degrees

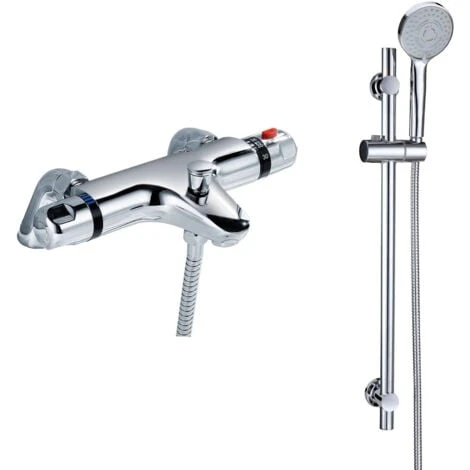

Riser Rail Kit Specifications

• Fully adjustable lower or upper wall mounting, making it ideal for new or replacement installations
• Adjustable height (from 300mm – 640mm)
• Button on handset bracket to slide the holder and adjust the angle
• Handset – 3 mode
• Chrome plated ABS plastic handset, with rubber easy clean nozzles
• Stainless steel, braided, flexible 1.5m double interlocking shower hose
• Soap dish attached to slider rail
• Finished in chrome ensuring a high quality reflective mirror finish
• Subject to a minimum pressure of 0.5 bar to maximum 6 bar
• UK standard size fitting

Technical Informations:

• The recommended operating water pressures for hot and cold are between 1 and 5 bar, although they will work at 0.5 bar. NB: To achieve 0.5 bars with a gravity tank system you need a height drop from the tank to the taps/outlet of some 5 metres (pressure equates to 0.1 bars per metre).
• This Valve will work on the following: Combination boiler / Gravity fed / Pumped hot water unvented hot water / Standard hot water cylinder type systems. The maximum unbalanced water pressure ratio is 5:1.

Flow Rates:

• 0.1bar: 6 l/min
• 0.5bar: 8.3 l/min
• 1bar: 12 l/min
• 2bar: 18.5 l/min
• 3bar: 22.5 l/min

Package Contents

• Deck Mounted Bath Shower Mixer Valve
• Deck Mounted Legs
• Slider Rail Kit
