80W Multi Room Wi Fi Amplifier Wireless Music Streaming Loud Speaker Hi Fi Amp

Mini Wi-Fi Streaming Stereo Amplifier

Overview:

Wi-Fi Control – Unlike previous generation amplifiers that allow wireless connection via Bluetooth, this amplifier connects to your devices wirelessly via Wi-Fi / the internet. There are a number of reasons as to why this is a major improvement, but the main ones are:

Range – Bluetooth has a range of around 10m. With Wi-Fi, the only range is your internet signal. If you get the internet at one side of your house / garden, you will be able to control this amplifier.

Reliability & Connection – Wi-Fi is much more secure than Bluetooth so no unwanted connections can occur. Wi-Fi is also much more stable and is less likely to drop signal or break up like Bluetooth

App Control – This amplifier has its own (FREE) Phone / Tablet app that allows you to link your Spotify / Amazon Music / Apple Music / Digital Radio all through one simple app. No need for a separate remote. Simply hide the amp away and you can control everything without needing line of sight.

App is Compatible with ANDROID & iOS

Multi-Room / Zoning – The clever app allows you to set-up and control multiple amplifiers from a single device (app). This is perfect for multi-room / multi-zone applications where you would like to control the volume of each system separately / combine zones into 1, all from your phone / tablet. Depending on the level of music streaming service you use, you can also play different things in different zones at the same time and control all volumes separately. This is an incredibly versatile piece of kit and a fantastic alternative to SONOS.

Power – The amplifier may be small, but it packs a punch, at peak, this small unit will pump out an impressive 80W max. However, thanks to the latest, CLASS-D DIGITAL sound reproduction technology, this little stereo amplifier sounds much louder than the figures suggest… It really is impressive! The amp can handle any domestic environment and most commercial environments (depending on the nature of the install).

Connectivity – Not all devices have a Wi-Fi option such as CD players or TV’s. Don’t worry, this amplifier has a line input, it is also supplied with a connection cable to save you the hassle of ordering one.

Line Output – Perfect for connecting this to a larger bank of speakers, to one of our excellent active subwoofers for a bass boost or even a sound-bar, this features allows you to connect the mini amp to a myriad of devices without upsetting the load balance of the unit.

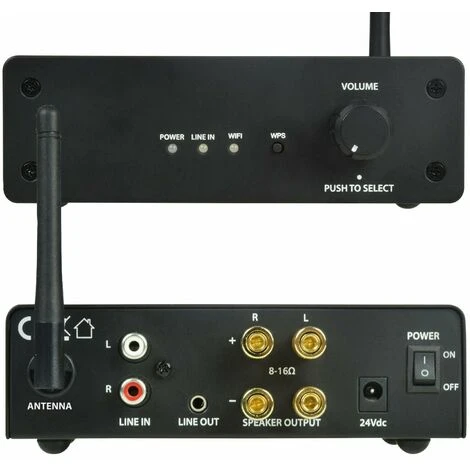

Features:

1x – Wi-Fi Module
1x – 2 RCA/Phono (red & white) inputs

4x – 4mm binding post speaker terminals (red & black) outputs
1x – 3.5mm Stereo Line Output

Durable metal body with rubber feet
UK mains power cable & Jack/PHONO connection cable supplied

Technical Specification:

Power Supply – 24Vdc, 2910mA (UK Transformer Cable Included)
Power output RMS per channel at 8 Ohms – 20W (per channel)
Power output MAX per channel at 8 Ohms – 40W (per channel)

Class D Amplifier
Load Impedance – 8 to 16 OHM
Wireless Connection – 802.11 b/g/n Wi-Fi standard – up to 300Mbps
Sampling Format – 192kHz – 24-bit max
Processor – MediaTek MT7688 580 MHz

Compatible with ANDROID & iOS

Dimensions – 150mm x 135mm x 50mm (WxHxD)
Weight – 700g

Further Information – How to install:

1) – First of all, you need to connect the amplifier to your chosen speakers by attaching a length of speaker cable to the positive and negative connections on the back of the amplifier. These positive and negative connections are often referred to as binding post terminals. Strip back the end of your speaker cable and push the binding post, this will reveal a slot for your speaker cable, insert and release the binding post. This type of connection will also accept banana plugs. If you would prefer to use them, they will work perfectly.

2) – Now plug the UK mains power cable supplied into the power point on the back of the amplifier, take the other end of the cable and plug into a mains power socket. You will see a light come on the front of the unit when the amp is switched on.

3) – Connect the amplifier to your Wi-Fi network using the free app. The step-by-step instructions listed on the app will have you connected in a couple of minutes, but if you need any help at all installing this, we are here to help you!

If you are connecting via a hard wired cable, just ensure that you have selected the “line input” source on the front of the amp.

We try our best to list a wide range of speaker systems but we know that everyone’s home / business is different. We have the means to create any bespoke speaker system bundle that includes indoor / outdoor, ceiling / wall speakers, Wi-Fi / Bluetooth Amps, cable cut to length and more. If you are struggling to find what you are looking for, please get in touch and we will come back to you with the perfect system, our friendly UK based tech team is always happy to answer your emails or calls any time!
